PV Solar Inverter

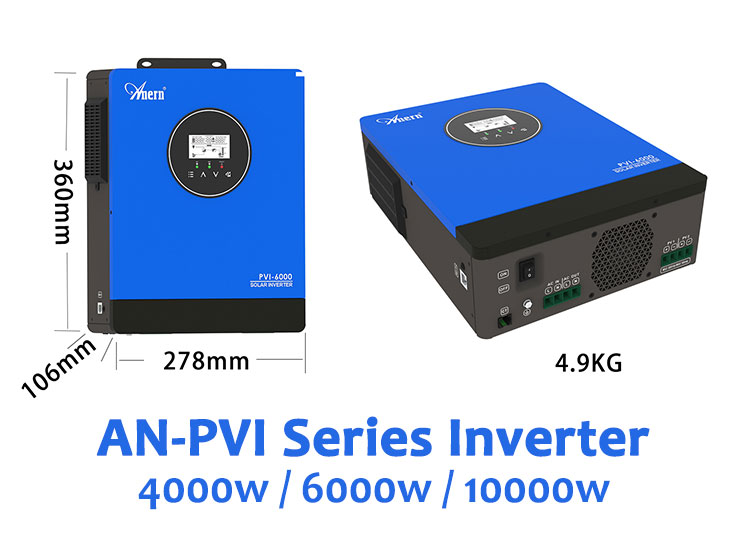

The AN-PVI series pure sine wave photovoltaic inverter represents Anern's cutting-edge innovation in solar technology. Designed specifically for solar power generation systems without the need for battery energy storage, this series significantly reduces system costs while delivering pure and stable alternating current (AC) output. The AN-PVI inverter is the ideal solution for both residential and commercial applications seeking efficient and intelligent solar power solutions. Chinese Manufacturer, Focus on Wholesale. ( *Send inquiry, Get Discount Now!)

Rated Power

6000W,10000W

Maximum AC Input Current

40A,50A

Nominal Output Voltage

220/230/240VAC

MPPT Voltage Range

60-450Vdc

Multi-MPPT Intelligent Energy Harvesting

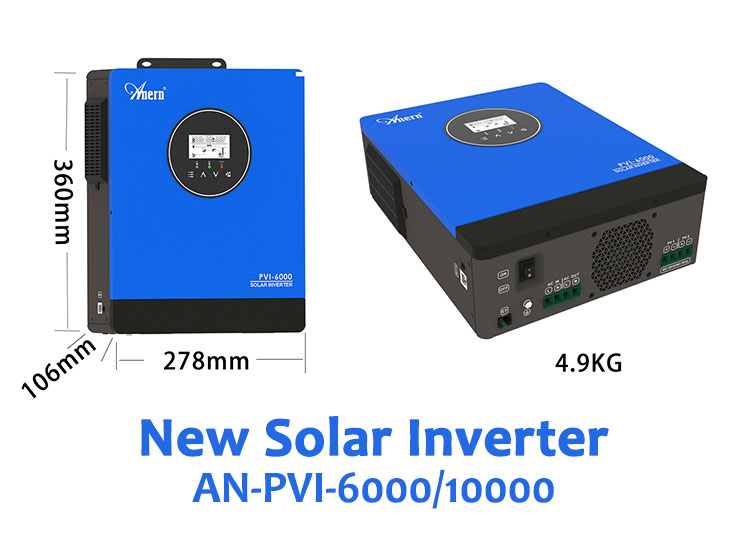

Equipped with 2 independent MPPT trackers for AN-PVI-6000 and 3 for AN-PVI-10000, covering a voltage range of 60–450VDC . The advanced MPPT algorithm achieves high tracking efficiency (both static and dynamic), maximizing solar energy capture even under partial shading or fluctuating light conditions . Supports a total PV input power of up to 9000W (6kW model) and 13500W (10kW model) for high electricity demand scenarios.

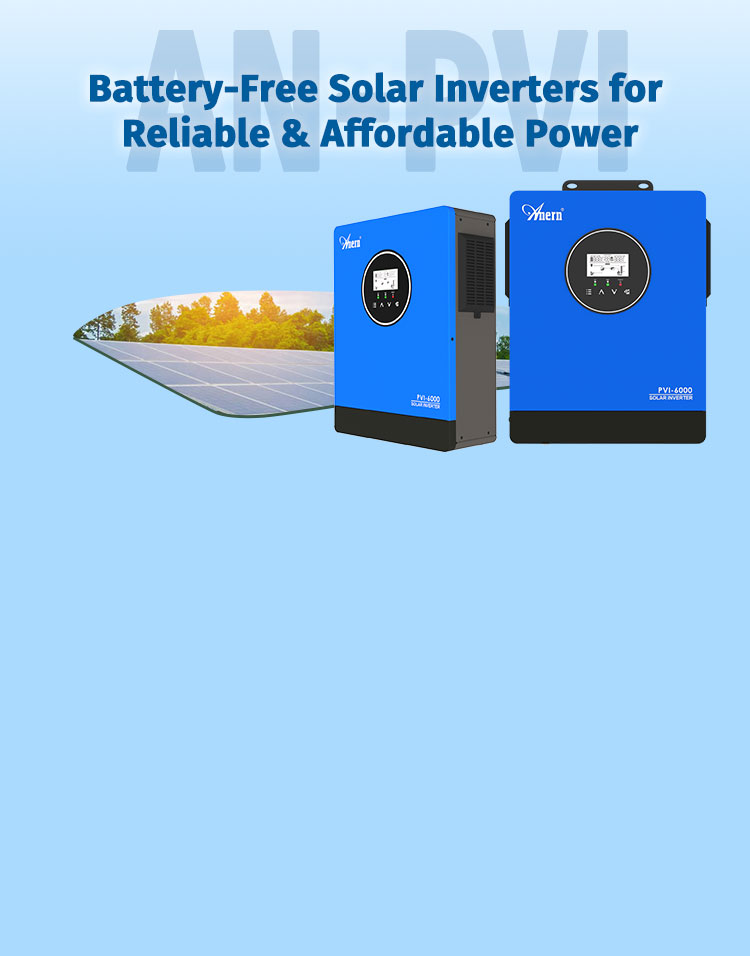

Battery-Free Cost Advantage

Specifically designed for grid-tie systems without energy storage requirements, eliminating battery purchase and maintenance costs while simplifying system configuration. Compared to hybrid inverters, it offers a more economical solution for users in stable grid areas.

Highlights

· Dual Power Supply & Seamless Recovery: Automatically supplements power from mains or diesel generators when solar generation is insufficient. Features automatic restart function that resumes operation seamlessly once mains power is restored.
· Comprehensive Safety Protection: Integrated with multi-layer safeguards, including overload, over-temperature, short-circuit, and anti-islanding protection . Ensures safe operation of both the inverter and the connected power system in extreme conditions.
· Cold Start & Environmental Adaptability: Supports cold start function to initiate operation via photovoltaic power even without mains supply. Designed to withstand harsh environments with operating temperature ranging from -20°C to 55°C.

Pure Sine Wave

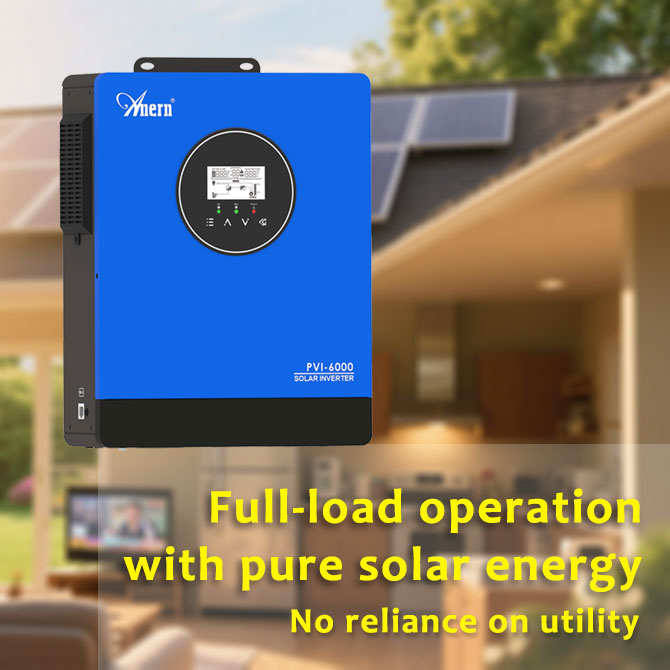

Delivers clean, stable 220/230/240VAC output with ±5% regulation, compatible with sensitive electronics like computers and home appliances. Under sufficient sunlight, it operates at full rated power solely on solar energy, reducing reliance on the grid.

Professional Service

1. Manufacturer, rich experience in Solar Inverter for 15 years.

2. A class solar panel, lifespan more than 25 years and 8 years battery.

3. Easy installation,connect each parts according to our use manual and video.

4. After-sales, provide professional solution within 48 hours.
